LC/3 TE - PRESS
Manual sandblasting machine with cyclone and retractable rotating table

Large, heavy-duty pressure sandblasting and shot blasting machine .

Working space

1500 x 1200 x 900 H mm

Max weight

600 kg

Why choose the Mod. LC/3 TE PRESS pressure sandblaster?

The Mod. LC/3 TE PRESS sandblaster combines a large work booth, pressurized blasting system, and a removable rotary table , with a capacity of up to 600 kg for heavy loads. The standard cyclone separator keeps the abrasive cleaner and contributes to the efficiency of the pressurized system.

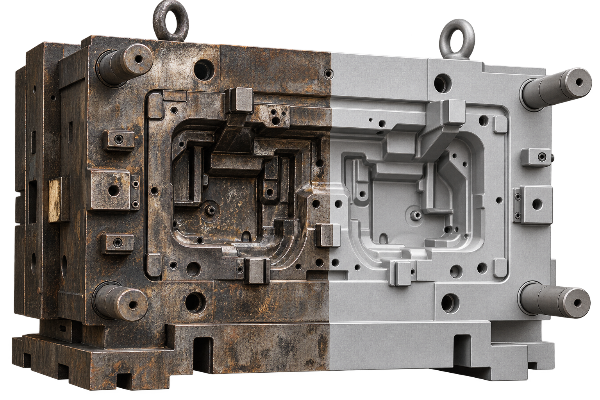

Sandblasting mold before and after treatment





Main sectors of use and applications

Thanks to its large internal space , its capacity of up to 600 kg and its pressurised firing system , the LC/3 TE PRESS is suitable for heavy and bulky components:



  • Automotive and restoration : Rapid sandblasting of frames, engine blocks, rims.



  • Metalwork : Removal of scale, rust, paint, and oxidation from large structures and parts.



  • Industrial maintenance : Intensive cleaning of heavy components, equipment and machinery parts with stubborn encrustations and residues.



  • General mechanics : Sandblasting and finishing of massive and difficult-to-move mechanical components.



  • Mold production and maintenance : Quick cleaning of large, heavy molds for plastic, rubber, and die-casting.



“...big loads, big power and big performance.”

Main features

Cyclone for abrasive regeneration

In Lampugnani sandblasters with a pressurized blasting system, the  cyclone separator is always supplied as standard , a construction choice oriented towards the quality and reliability of the system.



The system separates the still usable abrasive from the fine dust and crushed particles, keeping the recirculating material cleaner and helping to  reduce the risk of clogging the pressure tank .



The result is a cleaner, more select abrasive, with greater continuity of operation and more consistent performance over time.



Cyclone operation for sandblasting machine with abrasive and dust separation



Technical data

Usable work area dimensions L x P x H mm 1500 x 1200 x 900
Maximum load capacity of work surface ‌kg 600
Overall dimensions L x P x H ‌mm 3080 x 1700 x 2000
Empty weight of the machine ‌kg 390
Number of doors ‌ 2
Rotating table ‌Ø mm 950
cyclone Against. LP/50 AR
Electric fan ‌HP 2/3
Air consumption l/min 1300 - 7 bar
Diet ‌V/Hz 400/240 - 50

Recommended accessories

For efficient extraction and a clean working environment , we recommend combining it with our  certified cartridge filter Mod. LAC/10 , complete with a  suitable extractor  and inserted in a sturdy metal cabinet.

Ergonomics and operator comfort

Innovative solutions designed to ensure construction quality, performance, safety, comfort, and attention to operator needs.

Padded gloves

Comfort sandblaster gloves

LAMPO-COMFORT Neoprene sandblasting gloves designed to offer maximum comfort and support when using the sandblaster and shot blaster.



Gun holder

Sandblasting gun support arm

Adjustable gun support, to be able to move the parts to be treated under the sandblasting and/or shot blasting jet without having to hold the gun.



Self-locking pedal

sandblaster pedal

Sandblaster pedal with step-by-step valve with interlocking function, to be able to activate and maintain the sandblasting/shot blasting jet while assuming the correct posture without having to constantly keep your foot on the pedal.
