LC/600 RSV4
Automatic sandblasting machine with rotating carpet

High-productivity automatic sandblasting machine for large production runs.

Working space

600 x x H mm

Max weight

50 kg

Why choose the Mod. LC/600 RSV4 automatic sandblasting and shot blasting machine?

The Mod. LC/600 RSV4 sandblasting and shot blasting machine is designed for automatic batch processing of small components. The tumblast belt continuously tumbles the parts, while the 4 adjustable guns ensure uniform treatment. Timers, an inverter, a cyclone separator and dedicated filter complete the automated cycle control.



Small brass parts for automatic batch processing





Main sectors and applications


Thanks to its versatility and compatibility with most abrasive media (glass beads, ceramic beads, aluminium oxide, grit or plastic media), the Mod. LC/600 RSV4 sandblasting and shot blasting machine is used in many industries:

  • Fasteners and small parts: batch processing of screws, bolts and metal components.



  • Precision engineering: deburring and cleaning of turned or milled components.



  • Mass production: uniform surface treatment of large batches of small parts.



  • Electroplating: surface preparation and uniform finishing before subsequent electroplating treatments.



  • 3D printing: cleaning, finishing and uniform surface treatment of small components produced using additive manufacturing.



“four guns, an automatic cycle and high productivity.”

Main features


4-gun oscillating system



The gun oscillation speed and tumblast belt rotation are adjustable, allowing the processing cycle to be adapted to different production requirements. The machine is equipped with 4 sandblasting and shot blasting guns. This configuration ensures complete coverage of the load for large production runs.

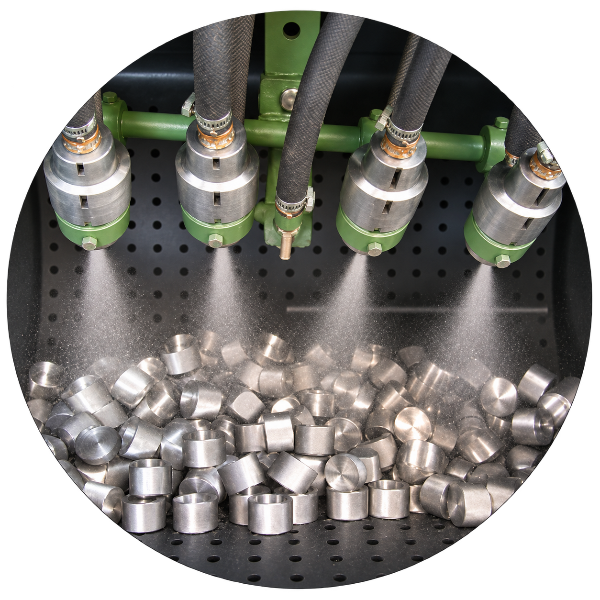

Sandblasting and shot blasting guns above the tumblast belt





Technical data


Usable belt width W mm 600 (capacity ~50 litres)
Maximum load ‌kg 50
Overall dimensions W x D x H mm 1000 x 1500 x 2200
Weight (empty) ‌kg 240
Number of doors ‌ 1
Cyclone Mod. LP/50 AR
Electric fan ‌HP 2/3
Filter ‌Mod. ‌LAC/10 / LAC/20
Air consumption per gun* ‌l/min 110 - 780 (from 1 to 7 bar)
Power supply ‌V/Hz 400/240 / 50

*4 sandblasting and shot blasting guns supplied as standard
