LC/550-551
Sandblasting machine with automatic rotating basket

Sandblasting and shot blasting machine for automatic batch processing of small parts and components

Working space

Ø mm. 550 (cestello) x - x - H mm

Max weight

25 kg

Why choose the Mod. LC/550 and LC/551 sandblasting machines?

The Mod. LC/550 and LC/551 sandblasting and shot blasting machines are designed for automatic batch processing of small components and hardware. The rotating basket lined with abrasion-resistant nylon, adjustable speed and programmable cycles allow uniform and repeatable processing. The LC/551-CR version also incorporates a cyclone separator.





Main sectors and applications


The Mod. LC/550 and LC/551 sandblasting and shot blasting machines are used in numerous industrial applications, including:



  • Metal accessories and small parts: uniform surface finishing of buttons, buckles and small metal accessories.



  • Small metal parts: surface treatment of screws, bolts and small mechanical components.



  • Automotive sector: cleaning and preparation of small gears or fittings.



  • Taps and valves: finishing of small hydraulic components.



  • Precision engineering workshops: deburring and surface uniformity on parts manufactured in series.
​​​​​​



“...load, programme and process automatically”.

Main features

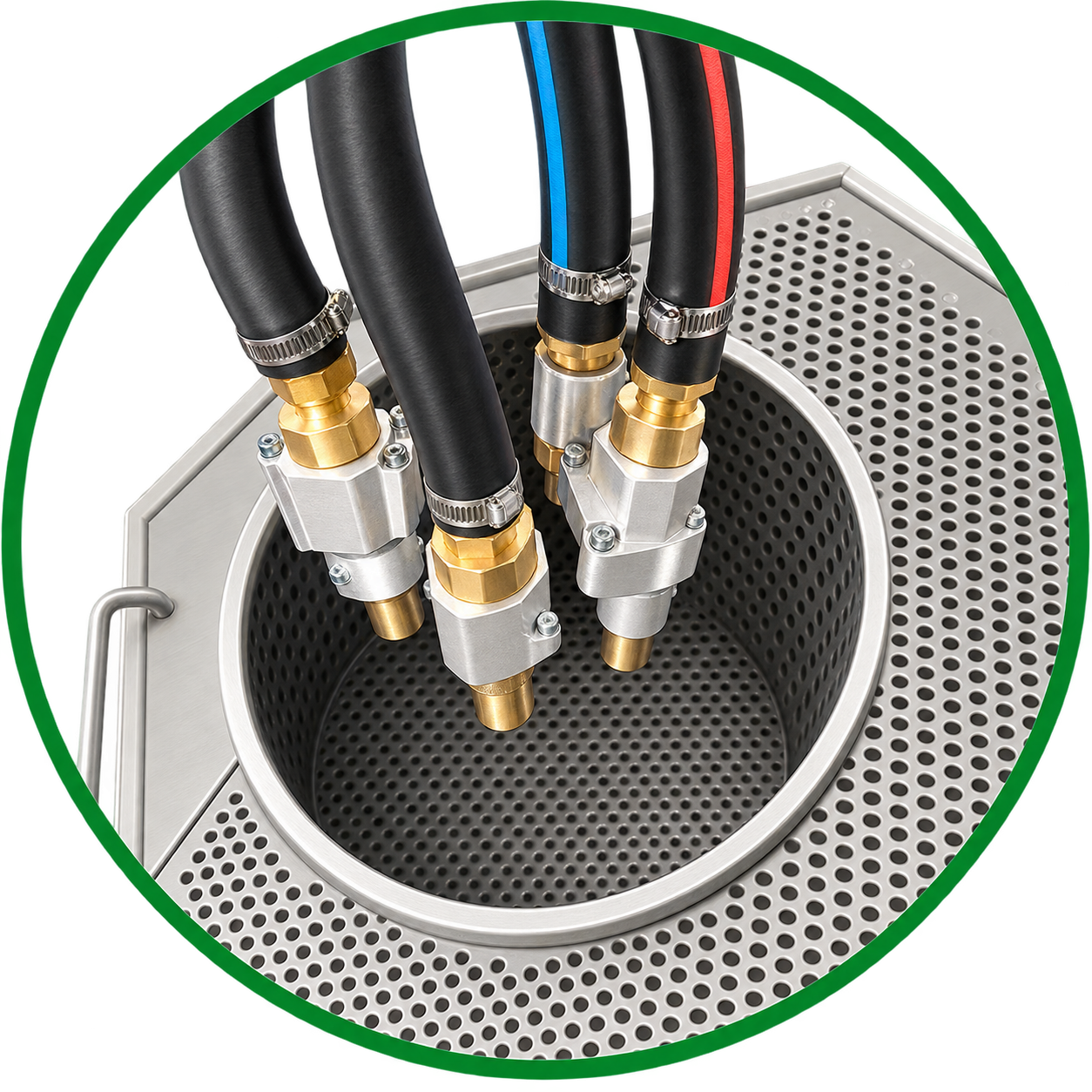

Abrasion-resistant nylon basket



The basket (available with a 550 mm diameter or an optional 350 mm diameter) is designed with a specific shape and angle that promote continuous tumbling and rotation of the parts during treatment, ensuring uniform exposure to the abrasive stream. The abrasion-resistant nylon lining provides durability and protects the components during treatment.







Programmable processing cycles



Thanks to the standard timers, gearmotor and potentiometer, the operator can set the treatment duration, adjust the basket rotation speed and use one or two guns simultaneously, ensuring a repeatable process and uniform results for every production batch.



Technical data
‌ ‌ ‌LC/550 ‌LC/551
Maximum load ‌Kg 25 (capacity ~22 litres)
Overall dimensions W x D x H mm 1270 x 1200 x 2300 ‌1770 x 1200 x 2000
Weight (empty) ‌Kg 200 ‌230
Number of doors ‌ 1
Basket ‌Ø mm 550 (350 optional) ‌550 (350 optional)
Cyclone ‌Ø mm ‌- as standard
Electric fan ‌HP 0,25 ‌0,75
Consumption ‌lt/min. 110 - 780 (from 1 to 7 bar)*
Power supply ‌V/Hz 400/240 - 50

* consumption per gun - 2 sandblasting guns are supplied as standard



Recommended accessories


Forefficient extraction and a clean working environment, we recommend pairing the sandblasting and shot blasting machine with our certified Mod. SE/1 cartridge filter, housed in a robust metal cabinet.
